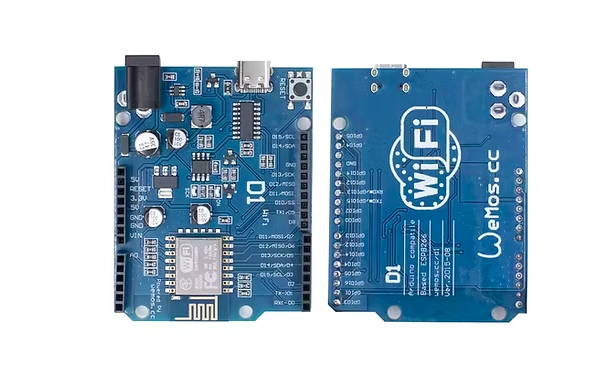

Product Details ESP-12E WeMos D1 UNOs R3 CH340 CH340G WiFi Development Board Based ESP8266 Shield Smart Electronic For Arduinos Compatible IDE The WeMos D1 is a ESP8266 WiFi based board that uses the Arduino layout with a operating voltage of 3.3V
As the documentation of this board online can be a little confusing, the purpose of this tutorial is to combine and simplify the steps needed to setup this board for development
With that, let’s proceed on with the specifications of the board
This board is compatible with the Arduino IDE and with NodeMCU
SPECIFICATIONS: - Microcontroller: ESP8266EX - Operating Voltage: 3.3V - Digital I/O Pins: 11 (all I/O pins have interrupt/pwm/I2C/one-wire capability, except for D0) - Analog Input Pins: 1 - Flash Memory: 4MB - On-Board Switching Power Supply: - Input Voltage Range: 9V to 12V - Output: 5V at 1A Max - Board Dimensions: 68.6mm x 53.4mm (2.701" x 2.102") / Long x Wide
Product Description
Product Details
ESP-12E WeMos D1 UNOs R3 CH340 CH340G WiFi Development Board Based ESP8266 Shield Smart Electronic For Arduinos Compatible IDE
The WeMos D1 is a ESP8266 WiFi based board that uses the Arduino layout with a operating voltage of 3.3V. As the documentation of this board online can be a little confusing, the purpose of this tutorial is to combine and simplify the steps needed to setup this board for development. With that, let’s proceed on with the specifications of the board.
This board is compatible with the Arduino IDE and with NodeMCU.
SPECIFICATIONS:
- Microcontroller: ESP8266EX
- Operating Voltage: 3.3V
- Digital I/O Pins: 11 (all I/O pins have interrupt/pwm/I2C/one-wire capability, except for D0)
- Analog Input Pins: 1
- Flash Memory: 4MB
- On-Board Switching Power Supply:
- Input Voltage Range: 9V to 12V
- Output: 5V at 1A Max
- Board Dimensions: 68.6mm x 53.4mm (2.701" x 2.102") / Long x Wide
