Product Details

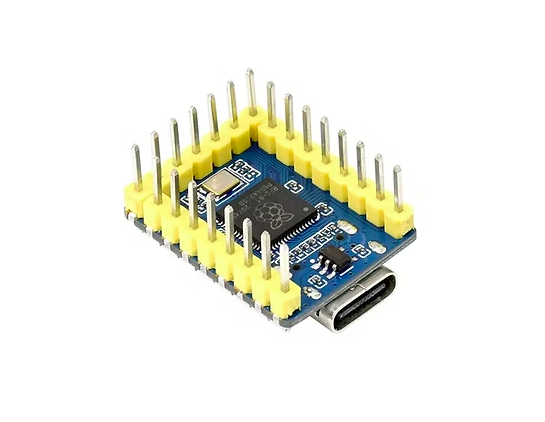

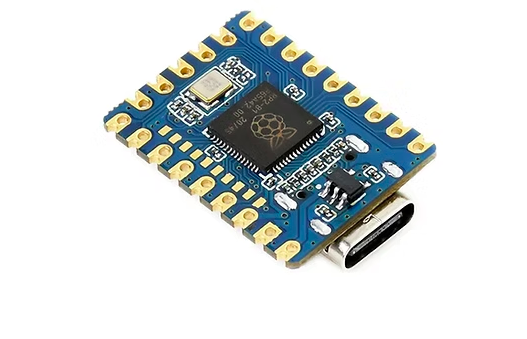

RP2040-Zero RP2040 for Pi Microcontroller Development Board Module Dual-core M0+ Processor 2MB Flash
Product Features:
- The RP2040 microcontroller chip is designed by Pi
- It is powered by a dual-core ARM M0+ processor and runs at up to 133MHz flexible clock
- It comes with 264KB ofSRAM and 2MB of on-chip Flash
- Real stamp hole design, can be directly welded into the self-designed base plate
- USB1.1 host and device support
- Supports low power sleep and hibernation modes
- Can be identified by USB as mass storage for support type download program
- 29 GPI0 pins of RP2040 (20 can be led by row pins, the rest can only be led by welding)
- 2 SPIs, 2 12Cs, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
- Accurate on-chip clock and timer
- Temperature sensor
- On-chip accelerated floating point library
- Eight programmable I/0 (PI0) state machines for custom peripheral support
