Product Description
Product Details

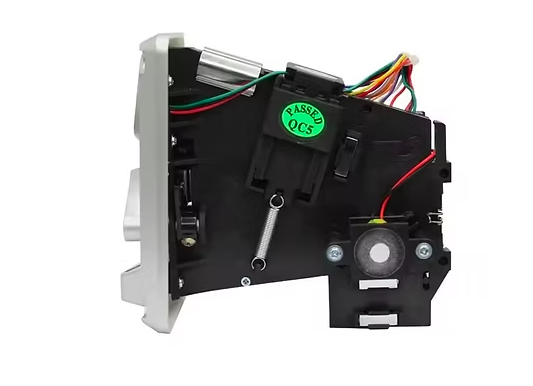

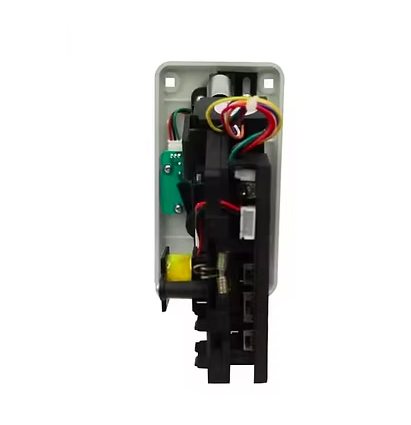

Advanced CPU TW-131 Coin Selector Comparable Coin Acceptor for Vending Machines
Features
1. FRONT ENTRY ELECTRONIC COIN SELECTOR
2. Capable for accepting all worldwide Coins and Tokens
3. Mechanism—Link with coin reject bar , Flush Clean from coin jam
4. CPU coin rolling down speed and timming presetting by directional accept sensors.
5. Invalidate against unusual stay , Reverse Draw, String Skip, Technical Fishing.
6. Select coin based on Diameter, Thickness and Metal content.
7. Switch of Normal Open and Normal Close for signal output of coin validation.
8. 3 ways adjustable triggering Pulse Duration of Timer Switch.
9. VR tuning and sensitivity switch of coin acceptance for eliminating slugs and improper coins.
10.Allows to connect Counter Meter
Specification:
- Item: TW-131 Coin Acceptor
- Coin Diameter: 22~28 mm
- Coin Thickness: 1.7~2.2mm
- Voltage: DC 12V ±10%
- Current: 65mA ±5%
- Accuracy rate of identification: 99%
- Temperature: -15°C~+75°C
- Atmospheric pressure: 86Kpa—106Kpa
- Signal Output: Pulse
- Pluse Witdth: 20ms/40ms/100ms
- Speed: ≤0.6s
Application Area:
Our coin acceptor widely used in coin kiosk, coin mechanism, coin device, car washing machine, TV, massage chair, cloth dryer, cyber coffee, Laundromat, laundry,computer ,amusement machine , arcade machine etc.
