Product Description
Product Details

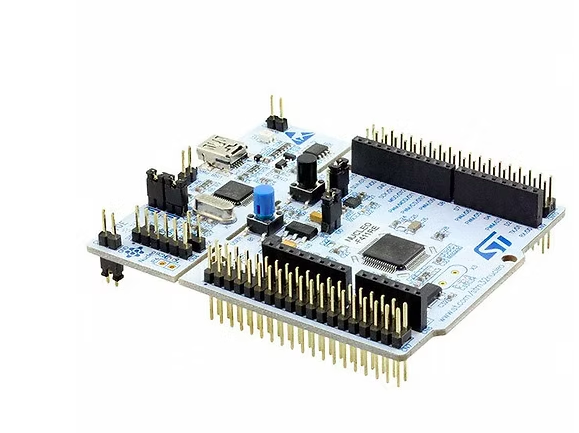

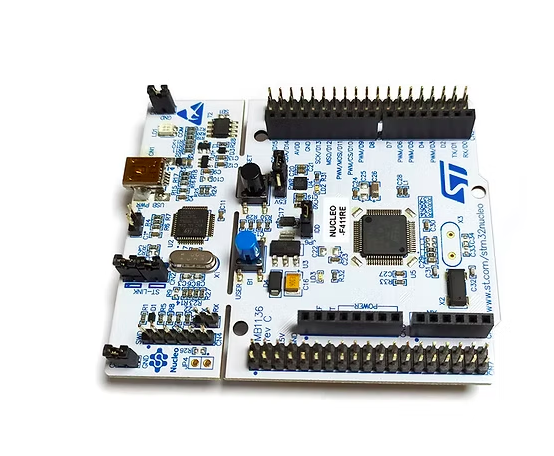

NUCLEO-F411RE Key Features
STM32 microcontroller with LQFP64 package
STM32F411RET6 ( 512K FLASH )
Two types of extension resources
Arduino Uno Revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
Power management access point
Three LEDs
USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB
Virtual Com port
Mass storage
Debug port
Comprehensive free software HAL library including a variety of software examples
Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs
