The 2-axis plastic Pan Tilt System - Not assembled

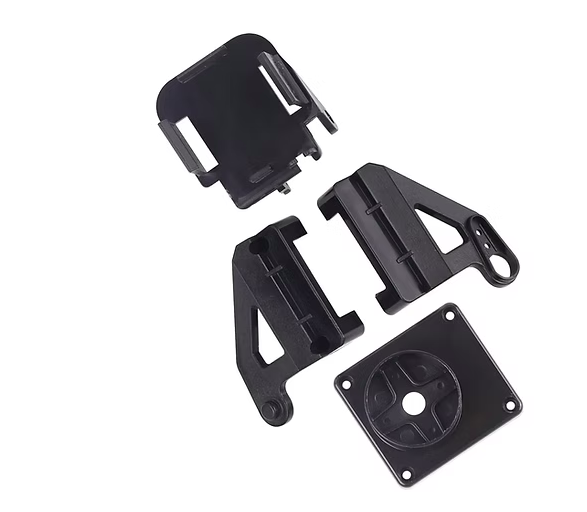

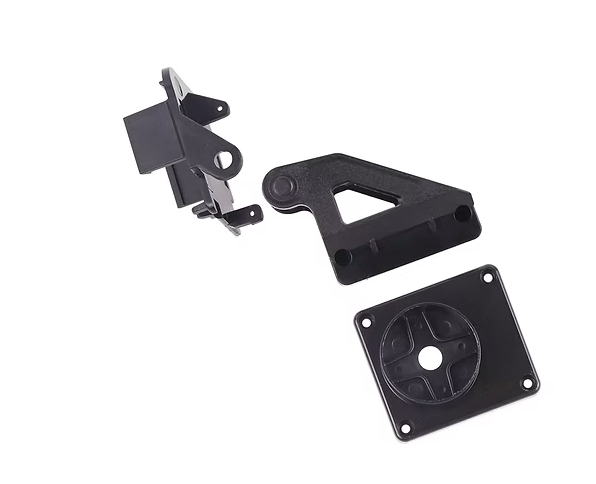

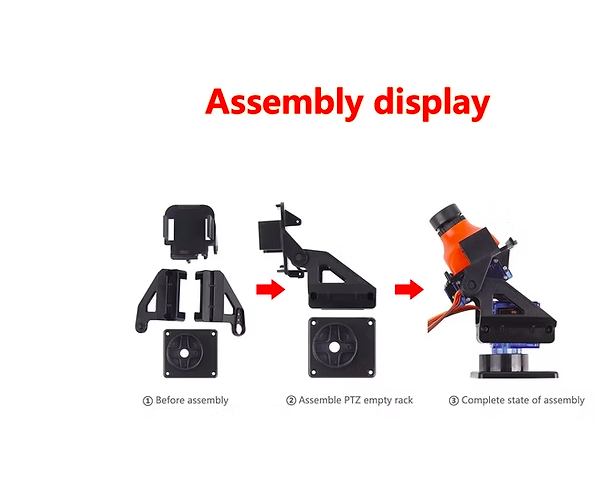

Product details Steering Gear Pan Tilt Two Axis PTZ Ultrasonic Aerial Model FPV Camera Support Accessories. With SG90 type steering gear, plastic gear 9g servo: The rocker arm of the steering gear needs to be cut off a little before installation, and the installation of the steering gear on the base also needs to modify the rocker arm (remove the edge of the round hole, and then put the rocker arm in or trim the steering gear arm)! At present, this kind of PTZ can only be installed with 28*28 camera modules, not 32 or 38 size cameras. (please know that the rudder arm of the steering gear needs to be trimmed.) The 2-axis plastic pan tilt weighs 17 grams, which is suitable for 9g-12g steering gear. It has beautiful appearance, precise manufacture, no virtual position and no shaking. It has a steering gear wire winding clamp. The product is shown in the figure, 4 nylon plastic parts, including screws. Self assembly is required. Product parameters - Applicable servo model: SG90 - Product weight: 17g - Working torque: 1.8kg/cm (4.8V) - Reaction speed: 0.1sec/60degree (4.8V) - Rotation angle: 90 degrees - Working voltage: 4.8V - Working temperature: 0 ℃ - 55 ℃ - Dead band setting: 10us - Gears: Plastic Gears - Pin definition: - Orange - signal - red - VCC - Brown - GND
